Hold on a second! Before you grab that screwdriver and start pulling your controller apart, let’s make sure we’re not trying to fix a software problem with a hardware solution. I’ve seen it countless times – what looks like a busted joystick is actually just a simple glitch. A few minutes of proper diagnosis can save you a world of hurt and might get you back in the game without opening the controller at all.
We’re going to check for updates, do a quick power cycle, and use some handy tools to figure out what’s really going on.
Diagnosing Your Controller Before You Start
The classic mistake is diving straight into a teardown. It’s tempting, I know, but many issues like random disconnects or weird input lag are actually caused by outdated firmware or a software conflict. Trust me, spending ten minutes on diagnostics first is the smartest way to kick off any repair job.
Let’s start with the oldest trick in the IT book: turn it off and on again. Fully restart your Xbox console. Then, pop the batteries out of your controller and let it sit for at least 30 seconds. This simple step clears out any temporary glitches and can solve a surprising number of mysterious connection problems right away.
Check for Software and Firmware Updates
Next up, let’s make sure everything is up to date. Microsoft pushes out firmware updates all the time to fix bugs, improve connection stability, and tweak performance. You want to be on the latest version.
- To update your controller firmware: On your Xbox, go to ‘Settings’ > ‘Devices & connections’ > ‘Accessories’. Pick your controller from the list and see if there’s an update waiting for you.
- Don’t forget software conflicts. If you’re playing on PC, things like Steam Input can sometimes get their wires crossed with a game’s native controller support, causing lag or buttons that just won’t work.
If you’ve updated everything and the problem is still there, try to isolate the issue. Plug the controller into a different device – a Windows PC is perfect for this, or even a mate’s console. If your controller suddenly works perfectly, the fault probably isn’t with the controller itself but with your console’s settings or its Bluetooth signal.

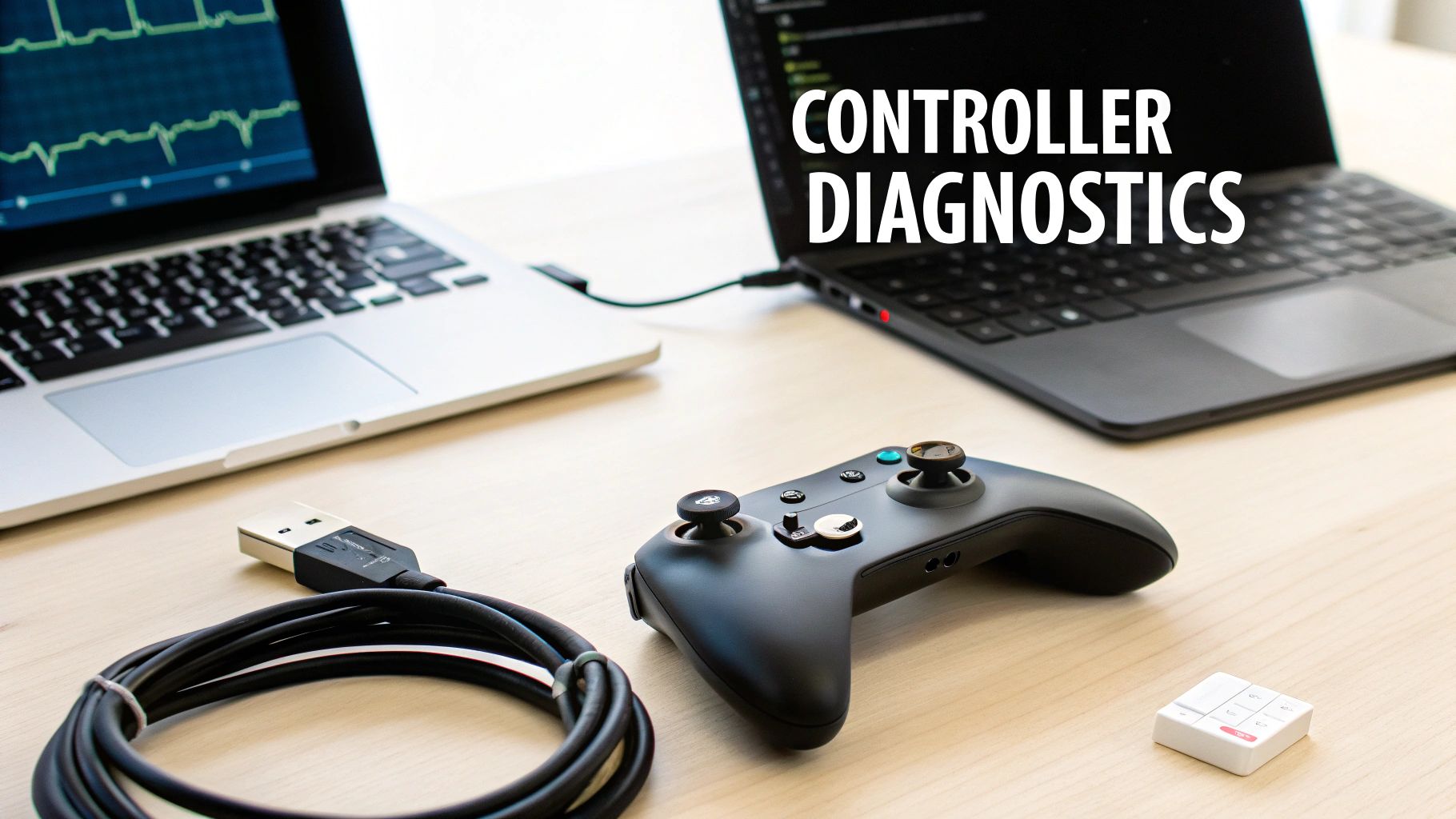

Using Diagnostic Tools to Find the Fault
For those really annoying problems like stick drift or a button that only works half the time, you need to see what the controller is actually telling your device. This is where diagnostic tools are brilliant.
Connect your controller to a PC and search for a free online “gamepad tester” website. These sites give you a live visual of every button press, trigger pull, and joystick movement. They are the best way to confirm stick drift – you’ll see a constant, tiny input from an analogue stick even when you’re not touching it.
A good gamepad tester will show you if a button is failing to register 100% of the time or if it’s just an intermittent fault. Knowing this helps you figure out if you’re dealing with a bit of dust and grime or a component that’s completely worn out.
By working through these steps, you systematically rule out all the software-related culprits first. This ensures you only pop the hood on your controller when you’re absolutely certain the problem is physical.
To help you get started, here’s a quick checklist that covers the most common symptoms and what you should try first.
| Xbox Controller Problem Diagnostic Checklist |
| :— | :— | :— |
| Symptom | Potential Cause | First Action |
| Controller won’t turn on | Dead batteries, faulty battery pack, or internal power issue. | Replace batteries with a fresh set. Try a different USB cable for charging. |
| Unresponsive or “sticky” buttons | Debris under the button, worn membrane, or liquid damage. | Clean the exterior with isopropyl alcohol. Check for updates. |
| Joystick drift (character moves on its own) | Worn-out sensor, dust/debris in the module, or a software calibration issue. | Use a gamepad tester to confirm drift. Power cycle controller and console. |
| Controller keeps disconnecting | Low battery, outdated firmware, or signal interference. | Fully charge the controller. Update firmware. Move closer to the console. |
| Triggers not registering full press | Debris in the trigger mechanism or a sensor issue. | Check for physical obstructions. Test sensitivity in a gamepad tester. |
This checklist should give you a solid starting point for figuring out what’s wrong. Once you’ve isolated the issue, you can move on to the specific repair with confidence.
Gearing Up: Your Essential Repair Toolkit
Trying to fix an Xbox controller without the right tools is a recipe for disaster. Trust me, I’ve seen the aftermath. You’re far more likely to snap a plastic clip or strip a screw than you are to actually fix anything. A good repair starts with having the right gear ready to go, so you can open the controller up cleanly and work on the delicate internals without causing more problems.
First things first, forget that junk drawer screwdriver. Xbox controllers are held together with specific screws to keep most people out. You’ll need a T8 Security Torx screwdriver. Notice the word ‘Security’ – it has a tiny pin in the centre, meaning a standard T8 driver is useless. If you try to force it, you’ll just mangle the screw head, and a simple five-minute job suddenly becomes a massive headache.
The Must-Have Tools for the Job
Besides that all-important screwdriver, a few other items are non-negotiable if you want to do this properly. These are the tools that let you work on small electronics without leaving a trail of destruction.
Here’s what you should have on your bench:
- Plastic Pry Tools (Spudgers): These are your best mates for separating the controller’s shell without leaving ugly gouges. A metal flathead screwdriver will chew up the plastic instantly.
- Fine-Tipped Tweezers: Absolutely essential. You’ll need them for grabbing and guiding tiny ribbon cables, plucking out screws, and positioning small components. Fingers are just too fat and clumsy for this kind of work.
- Isopropyl Alcohol (99%): The go-to for cleaning gunk off sticky button contacts or wiping away flux after soldering. The best part is it evaporates in seconds and leaves zero residue.
- Compressed Air: A quick blast can often clear dust and debris from inside a joystick mechanism. Sometimes, this alone can fix a minor drift issue without you even needing to open the controller.
A dedicated electronics repair kit is a brilliant investment and will only set you back about $25 to $40 AUD. These kits usually pack in all the different screwdriver bits, spudgers, and tweezers you could ever need for this job and any future tech repairs. If you’re keen on the whole DIY repair scene, it’s interesting to see major companies getting on board with initiatives like Apple’s Self Service Repair program.
Finding Quality Replacement Parts in Australia
Got your tools? Great, now you need the parts. When you’re dealing with common issues like stick drift, you can find replacement analogue stick modules pretty easily from Australian online stores like Jaycar or other specialist gaming part suppliers. A new module is usually only $10-$15 AUD.
It’s the same story for things like button contact pads or bumpers – they’re cheap and easy to find. For those who own multiple consoles, you might find our guide on https://ctf.com.au/wp-sitemap-posts-post-1.xml/ps-5-controller-repair useful too.
Before you buy anything, just do a quick calculation. Add up the cost of the tools and the parts, and weigh that against the price of a brand-new controller or a professional repair. It helps you make sure you’re actually saving money.
How to Fix Analogue Stick Drift for Good
Stick drift. It’s the ghost in the machine for any modern gamer. You know the feeling—your character starts creeping across the screen, or your aim slowly veers off target, even when your thumbs are nowhere near the sticks. It’s maddening, and it can completely throw you off your game.
It’s also one of the most common reasons people bring their controllers in for repair. But before you do that, you should know that it’s often something you can fix right at home.
We’ll walk through the fixes, starting with the easiest and working our way up. More often than not, a good clean is all your controller needs to get back in fighting shape.
First, Try Cleaning Without Taking It Apart
Before you reach for a screwdriver, let’s start with the basics. Over time, dust, skin cells, and tiny bits of snack debris inevitably work their way into the gap around the analogue stick. This gunk can physically block the sensors, causing them to send faulty signals. This is hands-down the most frequent cause of minor drift.
Here’s what you’ll need to get started:
- A can of compressed air: Grab the controller, push the drifting stick all the way to one side, and give a few short blasts of air into the crevice at its base. Work your way around the entire circumference of the stick, repeating this from every angle to blow out anything that’s gotten lodged in there.
- High-percentage isopropyl alcohol (IPA): You want 99% IPA if you can get it. Lightly dampen a cotton swab (don’t soak it) and carefully work it around the ball joint at the base of the stick. Give the stick a good rotation to make sure you clean the whole mechanism. The high alcohol content means it will evaporate almost instantly without leaving any conductive residue behind.
Once you’re done, give it a few minutes to air dry completely. Hop into a game or use an online gamepad tester to check your work. For a lot of people, this is all it takes to solve the problem.
Remember, the key is to be gentle. You’re trying to remove physical blockages, not flood the electronics. A targeted clean is always safer and more effective than dousing your controller in liquid.

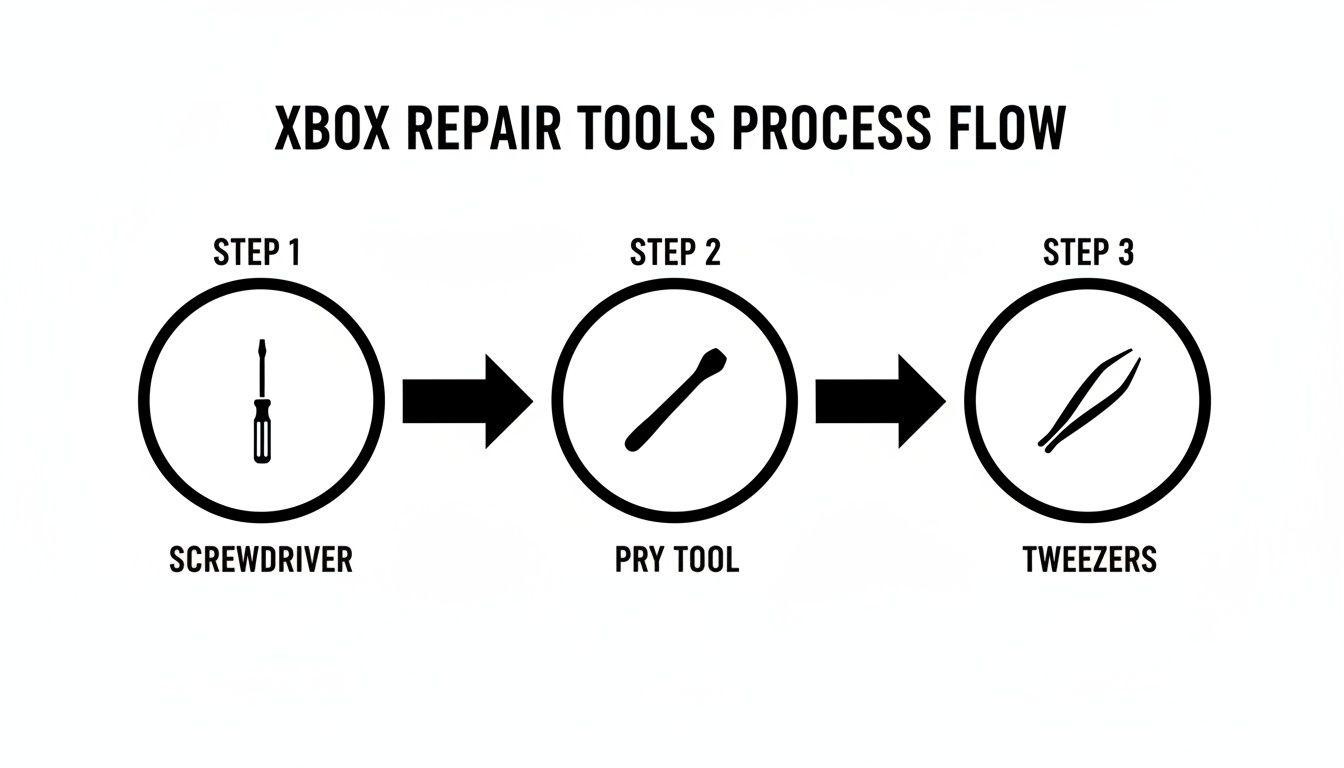

The right tools make all the difference between a successful fix and a broken piece of plastic. This is the basic kit I recommend for any controller repair.
Seriously, investing in a proper T8 Torx screwdriver and a good set of pry tools will save you a world of frustration.
The Permanent Fix: Replacing the Analogue Stick Module
So, cleaning didn’t do the trick. That usually means the problem is deeper—the internal potentiometer, which is the component that actually registers the stick’s position, has likely worn out. It happens. At this point, the only real solution is to replace the entire analogue stick module.
This is definitely a more advanced repair. It requires opening up the controller and breaking out the soldering iron, so you’ll need to be comfortable working with small electronics. If you’ve ever tackled jobs on other consoles, like the ones in our guide to Nintendo Switch repairs, you’ll have a good idea of what to expect.
Here’s a bird’s-eye view of what the process looks like:
- Get the Controller Open. This involves popping off the side grips and faceplate, then using a T8 security Torx screwdriver to remove the screws holding the shell together. I always recommend laying screws out on a magnetic mat so you don’t lose them.
- Expose the Circuit Board. Once you’re inside, you’ll have to carefully unclip ribbon cables and lift out the main circuit board (PCB). The analogue module is soldered directly onto it, so you need to get to the underside.
- De-solder the Faulty Module. This is where it gets tricky. The module is held on by 14 pins. You’ll need a good soldering iron and a de-soldering pump or braided wick to cleanly remove the solder from every single pin without lifting the delicate pads on the board. Take your time here.
- Solder in the New Module. Slot the new analogue stick into place, making sure it sits completely flush against the board. Then, carefully solder each of the 14 pins, aiming for clean, solid joints.
- Put It All Back Together. Reassemble the controller in reverse order, making sure every ribbon cable clicks back into place. Power it on and give that new stick a thorough test to check its movement and accuracy.
Just be aware that while the general idea is the same, there are small variations between models. The internals of an Xbox Elite controller are more complex than a standard one, and the circuit board layout on a Series S/X controller differs slightly from the older Xbox One pads.
Restoring Unresponsive Buttons and Triggers
It’s one of the most frustrating moments in gaming: you line up the perfect shot, squeeze the trigger, and… nothing. When buttons get mushy, stick, or just flat-out refuse to respond, the culprit is almost always the same—a slow build-up of dirt, dust, and maybe a little bit of snack residue.
Thankfully, fixing this is one of the most satisfying DIY jobs you can tackle. Unlike stick drift, which often points to worn-out mechanical parts, button problems are usually just a matter of grime getting in the way.
Underneath each button sits a soft, conductive rubber membrane. Pressing the button squishes this membrane against a contact point on the circuit board, which tells the Xbox you’ve made a move. Over the years, that contact point gets dirty, blocking the connection. Time to open it up and give those internals a much-needed deep clean.

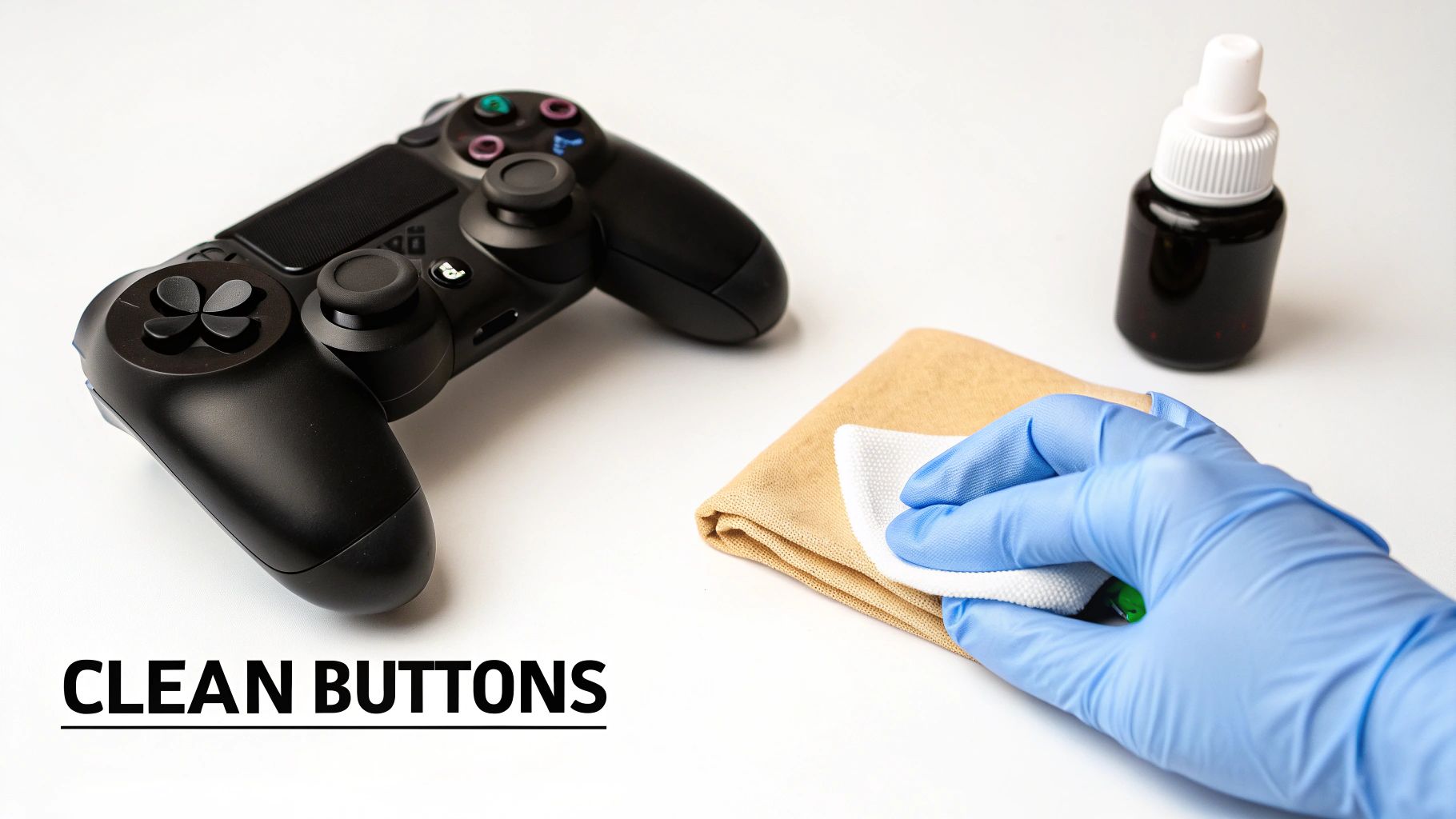

Giving Your Controller a Deep Clean
Before you start, get your tools ready: a T8 security Torx screwdriver, some plastic pry tools, and a bottle of high-percentage isopropyl alcohol (IPA). Your main challenge is to get the controller open without snapping any of the delicate plastic clips or damaging the ribbon cables inside.
Once you’ve got the shell apart, you’ll be looking at the main circuit board. The face buttons (that’s your A, B, X, and Y) and the D-pad are usually all connected by a single rubber membrane sheet. Go ahead and gently lift that entire sheet away from the board.
See those gold or carbon-coated circles on the board? Those are the conductive pads. This is where the magic happens, and it’s where you’ll focus your cleaning efforts.
- The Circuit Board: Grab a cotton swab and lightly dampen it with 99% IPA. Gently wipe each conductive pad in a circular motion. You’re not trying to scrub it, just lift away any oily build-up.
- The Rubber Membrane: Now, flip the rubber membrane over. On the underside of each button nub, you’ll find little black, carbon-coated discs. These are just as crucial. Use a fresh, IPA-dampened cotton swab to clean each one.
- The Plastic Buttons: While you’ve got everything apart, pop the plastic buttons out of the faceplate. A quick wash with some soapy water will get rid of any sticky gunk on the sides. Just make sure they are 100% dry before reassembly.
Give the alcohol a few minutes to evaporate completely before you put it all back together. In most cases, this simple clean is all it takes to bring back that crisp, responsive feel.
A word of warning: stick to isopropyl alcohol. Household cleaners can leave behind a conductive residue that will short out the electronics. Patience is your best friend here—don’t rush it.
What if a Button Is Still Dead?
So, you’ve cleaned everything meticulously, and a button still won’t work. This usually means the problem is a bit more serious. It could be that the conductive pad on the membrane has worn out completely, or there’s a tiny break in the circuit on the board itself.
If you have a multimeter and know how to use it, you can test for continuity. Set it to the continuity mode (the one that makes a beeping sound). Touch one probe to the button’s contact pad and the other to a ground point on the board. When you press the rubber membrane down onto the pad, the multimeter should beep, confirming the circuit is complete.
No beep? The conductive pad on the membrane is probably done for. The good news is that replacement rubber membrane kits are cheap and easy to find online. If the issue is a broken trace on the circuit board, that’s a much trickier fix that often requires a professional touch. For most gamers, though, a good clean is all you’ll need to get back in the action.
Knowing When to Call a Professional Repair Service
Fixing your own Xbox controller can be a really satisfying job, but it’s just as important to know when to put the tools down. DIY has its limits. Pushing past your comfort zone can quickly turn a simple fix into a permanent paperweight.
Honestly, the moment you spot any damage to the main circuit board—that green PCB—it’s probably time to stop. Things like scratched traces, lifted contact pads from a clumsy soldering attempt, or the tell-tale green crust of liquid damage are serious business. These problems need specialised gear like microscopes and micro-soldering stations to fix properly.
The Big Red Flags for DIY Repair
Some jobs are just plain risky if you haven’t got the experience. It pays to be honest with yourself about what you can handle before opening that controller up.
Here are a few clear signs it’s time to find a pro:
- Complex Soldering: Swapping out an analogue stick module is one thing. But trying to replace a busted USB-C port or other tiny surface-mount components? That takes a very steady hand and pro-level temperature control. One slip and you’ve cooked the board.
- Mainboard Damage: If you think the main processor or another core chip has failed, that’s way beyond a simple component swap. This is the brain of the controller, and it’s not a DIY-friendly fix.
- Multiple Failures at Once: When your controller is acting up in several different ways—say, you’ve got stick drift, a dead button, and it won’t connect properly—it often points to a deeper, more serious fault on the mainboard itself.
Look, sometimes the smartest move is knowing when to tap out. If a repair feels like it’s getting away from you or you think you’ve already made a mistake, just stop. A good technician can often fix a small error, but pushing on can cause damage that no one can reverse.
The Economics of Repair Versus Replacement
For gamers here in Perth, the decision often boils down to simple maths. As more people have bought consoles, the demand for controller repairs has shot up, and local shops will tell you it’s one of their most common jobs. While you can go through Microsoft, an out-of-warranty replacement can set you back 40–60% of the cost of a new one once you factor in shipping.
With a brand new controller hovering around $90 AUD, that’s a decent chunk of change.
This is where local professional services really shine. For common problems like stick drift or unresponsive buttons, a repair will typically cost somewhere between $60–$120 AUD. If you’re in a Perth suburb like Balga or Karrinyup, that could mean saving $30–$50 compared to buying new. Plus, you often get it back the same day.
When you just need a reliable fix without the wait and expense of a replacement, looking into a gaming console repair near you is almost always the best call.
Your Top Xbox Controller Repair Questions Answered
When your trusty controller starts acting up, you’re suddenly faced with a bunch of questions. Should I try to fix it myself? Is it worth paying a pro? Or should I just give up and buy a new one? It can be a tough call.
Let’s cut through the noise. Getting a handle on the warranty situation and the real cost of fixing versus replacing is the first step. Here are the straight answers to the questions we hear all the time.
Will I Void My Warranty if I Open the Controller?
Almost certainly, yes. The moment you crack open that plastic shell, you can kiss any remaining manufacturer’s warranty goodbye.
Before you even think about grabbing a screwdriver, the first thing you should do is check your warranty status on Microsoft’s official support site. If you’re still covered, their replacement service is a no-brainer—it’s your safest and best bet. This guide is really for those of us with controllers that are well past their warranty period, where DIY or third-party repair starts looking like a much smarter option.
In Australia, the official support channels can be a bit of a mixed bag once your warranty expires. While Microsoft does offer a service, they’ll often turn away out-of-warranty controllers, leaving you with two choices: buy a new one or find an independent repair shop. We’ve heard from local gamers who’ve paid for an official assessment only to have their controller sent back with a “no defect found” note. It’s no wonder so many are turning to specialist technicians for a clear quote and a predictable outcome. You can read up on the official Xbox service process on Microsoft’s support page.
For an Xbox owner here in Perth, the difference is huge. A local technician can often turn around a repair in a day or two, complete with a warranty on parts and labour. That’s a massive improvement over a multi-week mail-in service with an uncertain result.
Is It Actually Worth Repairing an Old Xbox Controller?
That really hinges on what’s wrong with it. For classic problems like stick drift or a dodgy bumper, a DIY fix is incredibly cost-effective. You can usually grab the parts you need for $20 to $30, which is a whole lot better than shelling out $90 for a brand-new controller. For these minor jobs, a repair is a financially savvy move.
Things get more complicated if the main circuit board is fried or you’re dealing with multiple broken parts. The cost of parts and the difficulty of the repair can shoot up quickly. In a situation like that, your best bet is to get a quick, free quote from a local pro. They can give you a clear comparison, helping you decide if fixing it still makes sense.
And if you’re curious about controllers in general, beyond just repairs, you might find some useful info in our comprehensive controller guides.
